Product presentation
Metal case, anti-vandal

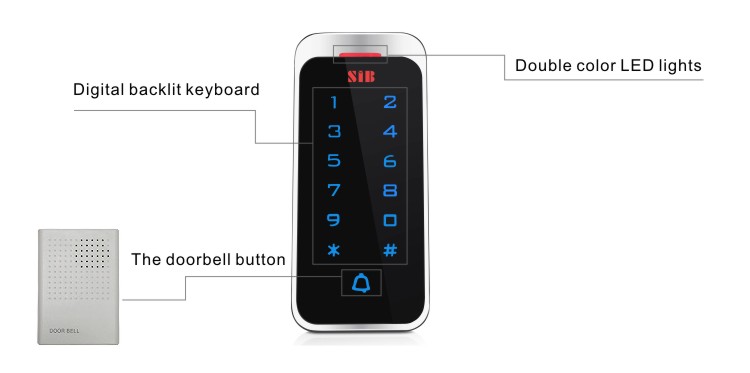

Digital backlit touch keypad
Multi-function standalone access
controller and reader,

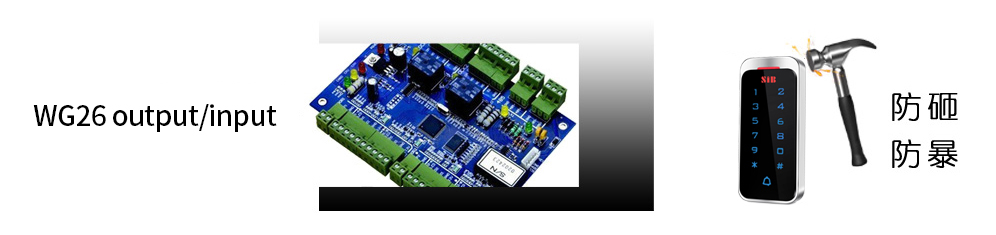

WG26 output/Input
Capacity: 2000 cards/ codes
Three way to open the door:
card, password, card + password
Product Version
Brand
Model
Card Type
Waterproof Degree
Product Name
SIB
T5EM-W
EM Card 125Khz
IP68
Waterproof EM Metal Touch Keypad Access Control
SIB
T5MF -W
MF Card 13.56Mhz
IP68
Waterproof Mifare Metal Touch Code Access Control
Technical parameters
Card type：EM/MF
Capacity: 2,000
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s(Adjustable)
Dimension：130 *60*22mm
Size & Weight
Package size

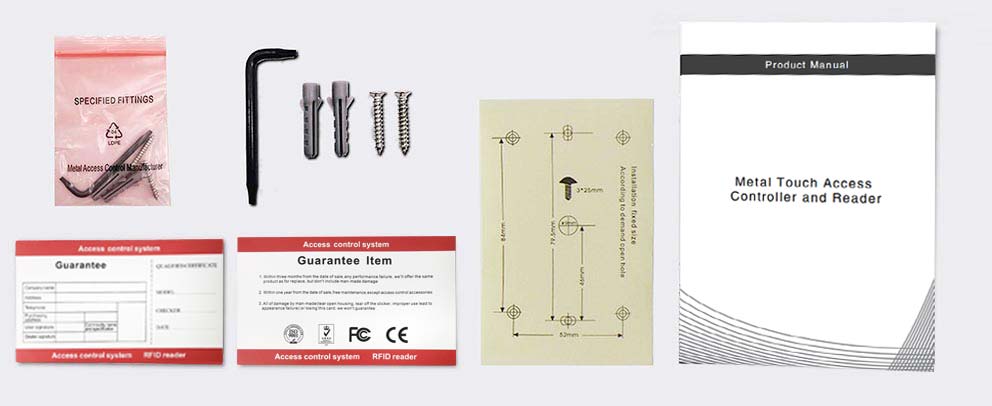

Packing list
Common power supply diagram
Special power supply diagram
