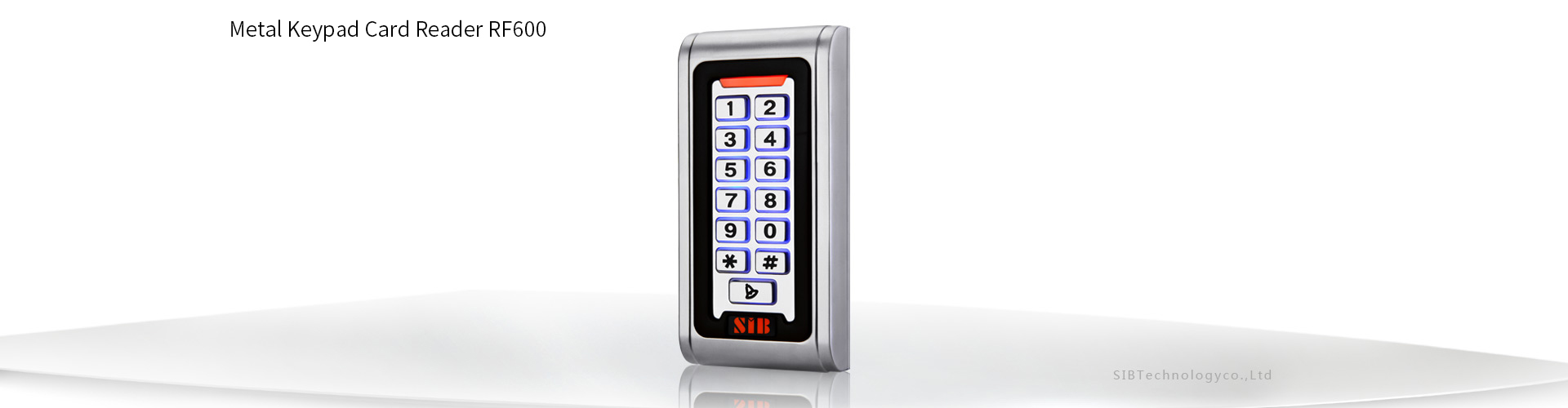

Wiegand26 Digital Keypad Door Card reader RF600 - RFID Card Reader

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

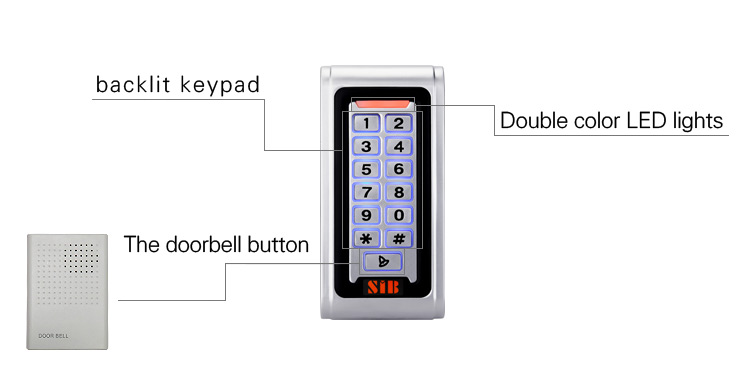

Product presentation

Material：Zinc alloy case
Low Power Consumption: Idle current≦30mA
Backlight keypad: can operate keypad in dark night
Wiegand output: with Wiegand output interface, WG26 card number or WG34 buttons output
Have doorbell key and interface: can connect with any doorbell

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	RF600EM-W	EM Card 125Khz	IP68	Waterproof Metal Digital Keypad EM Readers
SIB	RF600MF-W	MF Card 13.56Mhz	IP68	Waterproof Metal Digital Keypad Mifare Readers

Technical parameters

Card type：EM/MF
Waterproof degree：IP68
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：120 *56*20mm

Size & Weight

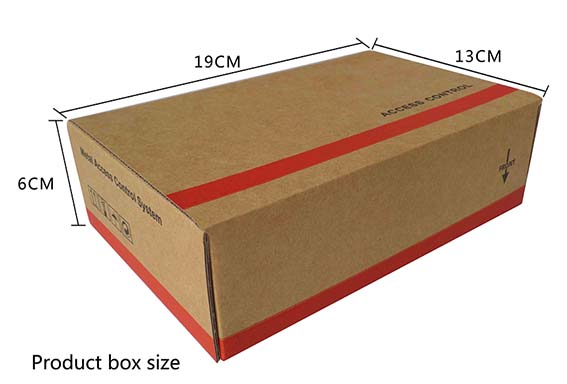

Package size

Packing list

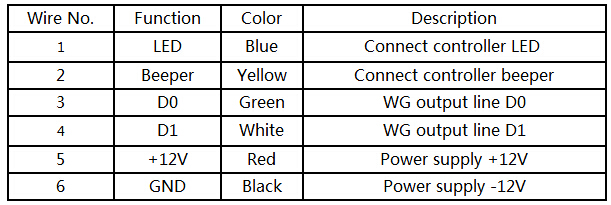

Wiring Instruction

Diagram

Click to download
