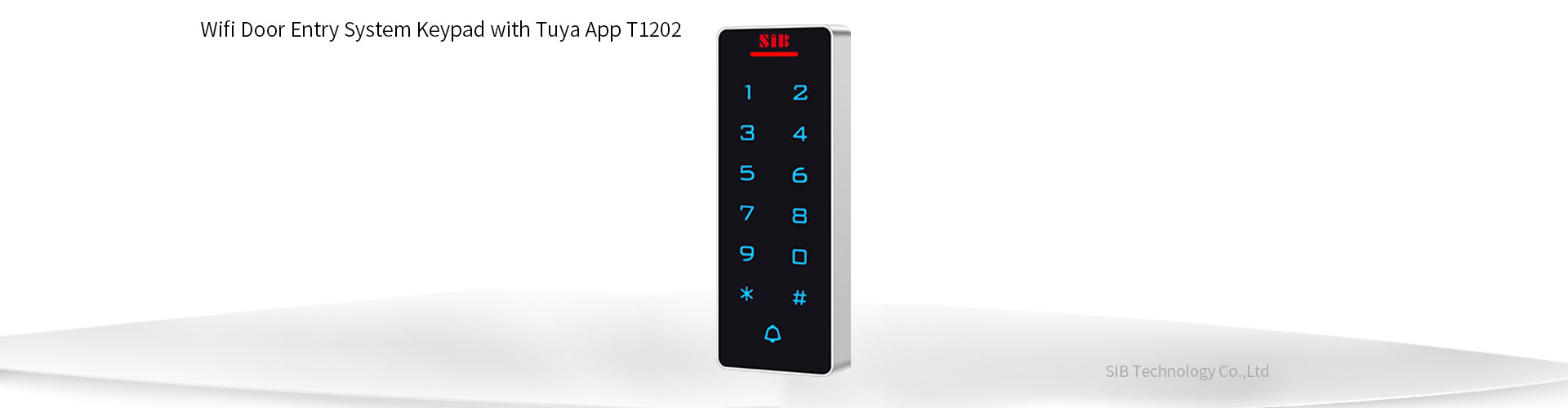

Wifi Door Entry System Keypad with Tuya App T1202 - WIFI Keypad Access Control

English: 中文

Product introduction
Technical parameters
System wiring diagram
Manual Down

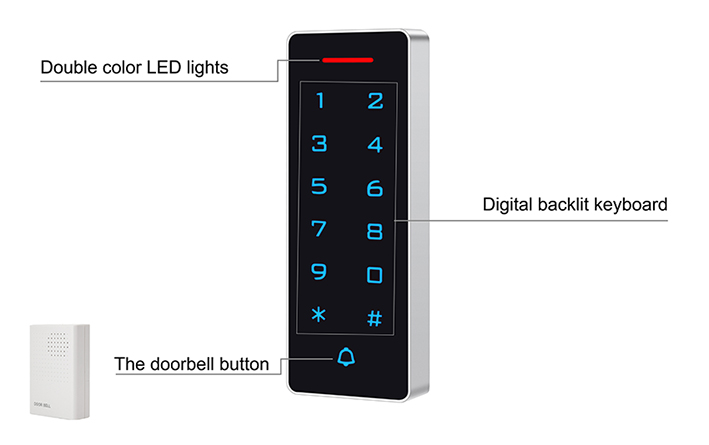

Product presentation

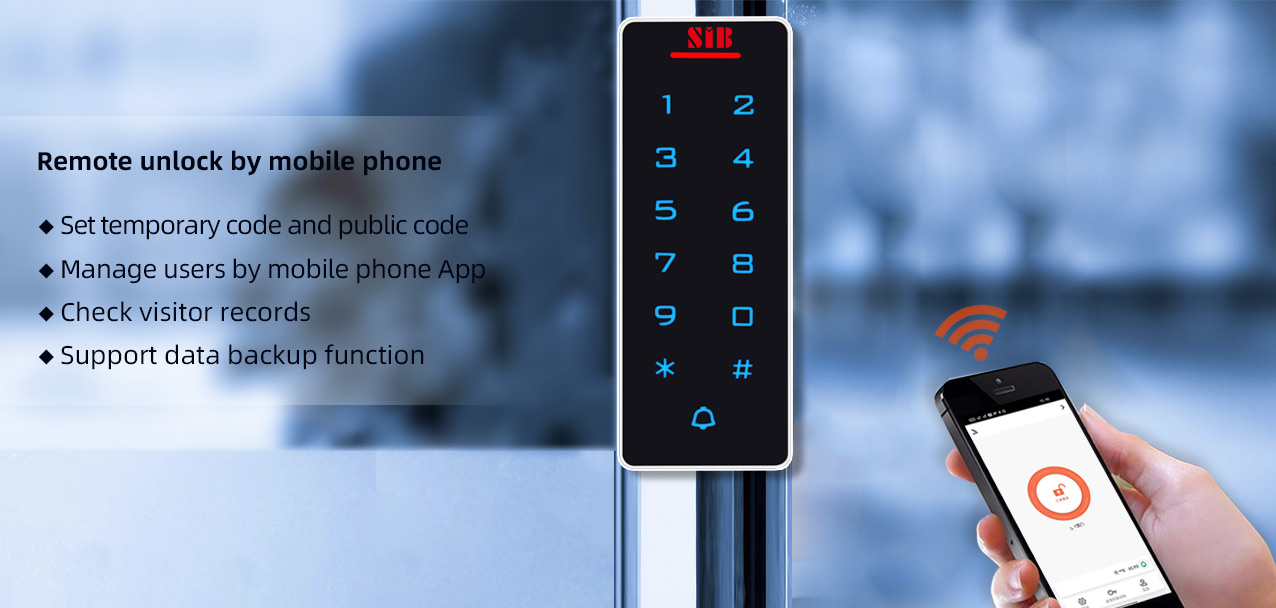

Remote unlock by mobile phone
Set temporary code and public code
Manage users by mobile phone App
Check visitor records
Wigend 26/34 output
Support three modes: standalone/reader/toggle relay
Support data backup function
Support admin add/delete card
Capacity: 2000users
Access ways: Card/Pin/Mobile app(Tuya)

Product Version

Brand	Model	Card Type	Waterproof Degree	Product Name
SIB	T1202EM (Wifi)	EM Card 125Khz	Indoor	Wifi Door Entry Panels With Tuya APP
SIB	T1202MF (Wifi)	EM Card 125Khz	Indoor	Tuya Smart Wifi Access Control Keypad Lock

Technical parameters

Card type:EM/MF
Static electricity: ≤30mA
Working voltage: DC12V±10%

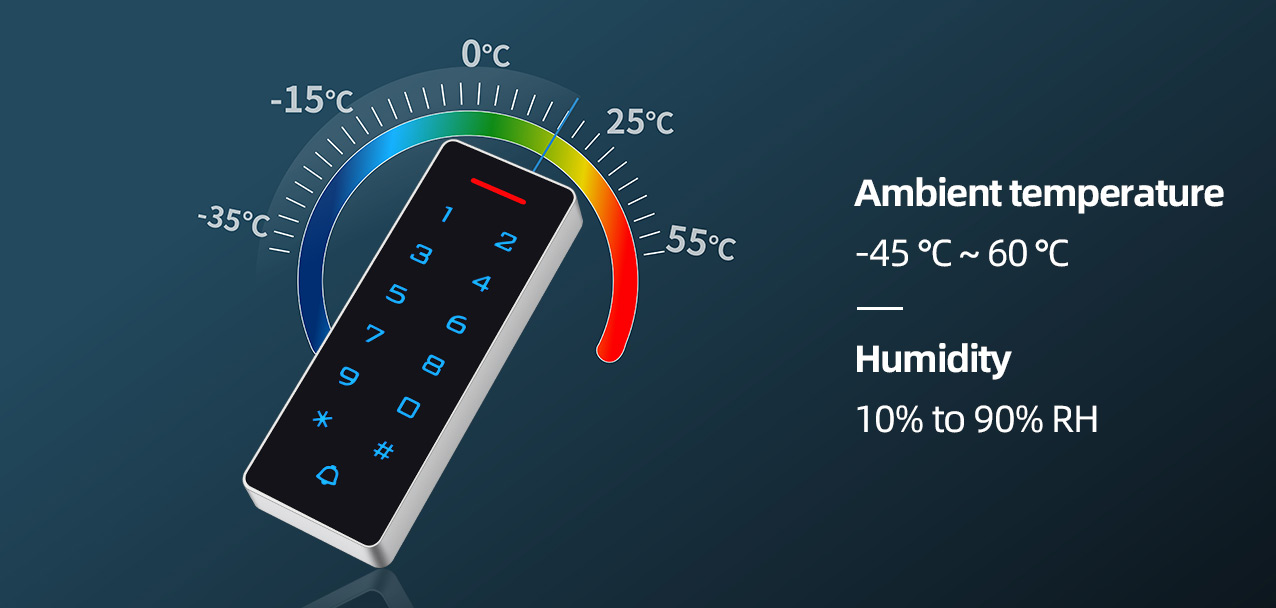

Ambient temperature: -45 ℃ ~ 60 ℃
Reading Range:3-6cm
Electric lock output: ≤1A
Humidity: 10% to 90% RH
Short-circuit Protect: ≤100μS
Door Opening Time:0-99s(Adjustable)

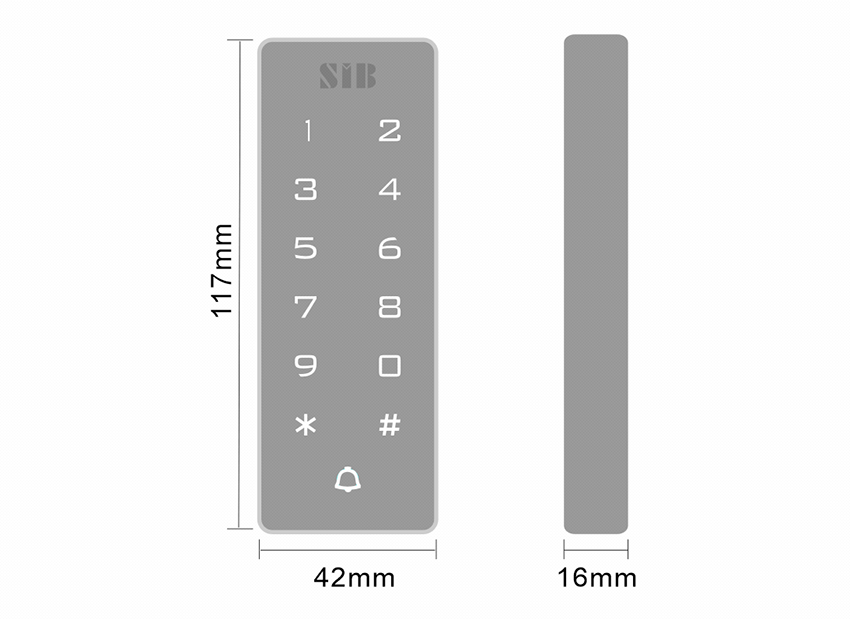

Product dimensions

Package size

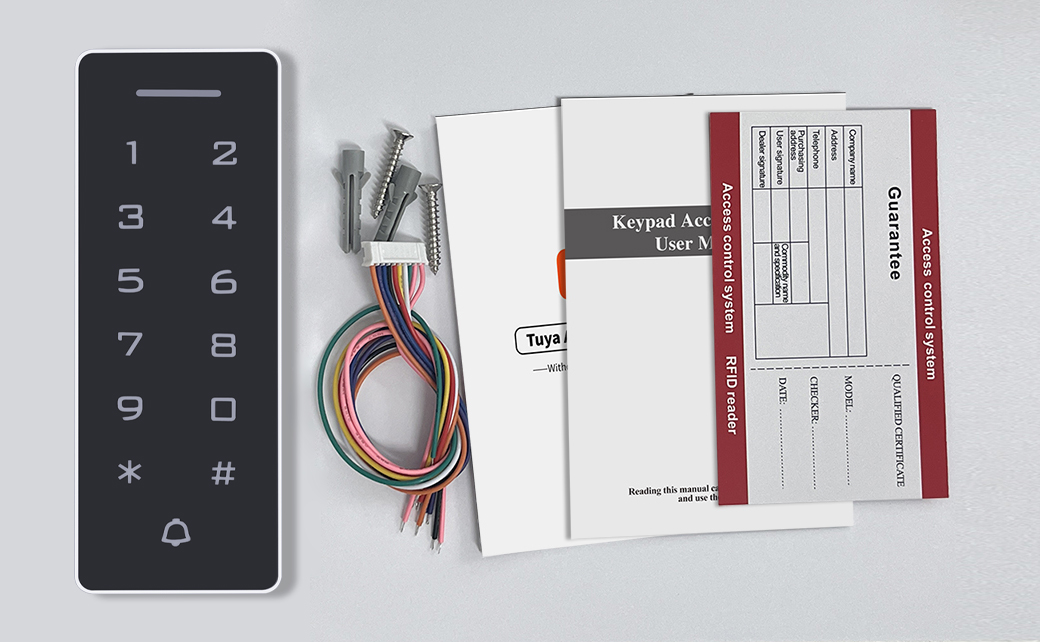

Packing list

Common power supply diagram

Special power supply diagram

Reader mode diagram

Click to download
