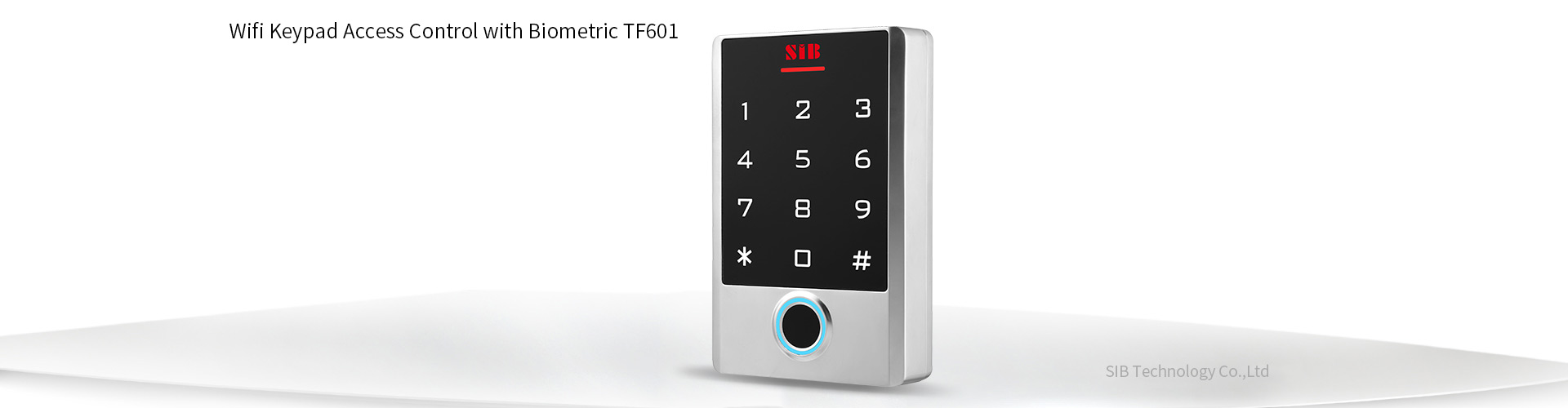

Product presentation

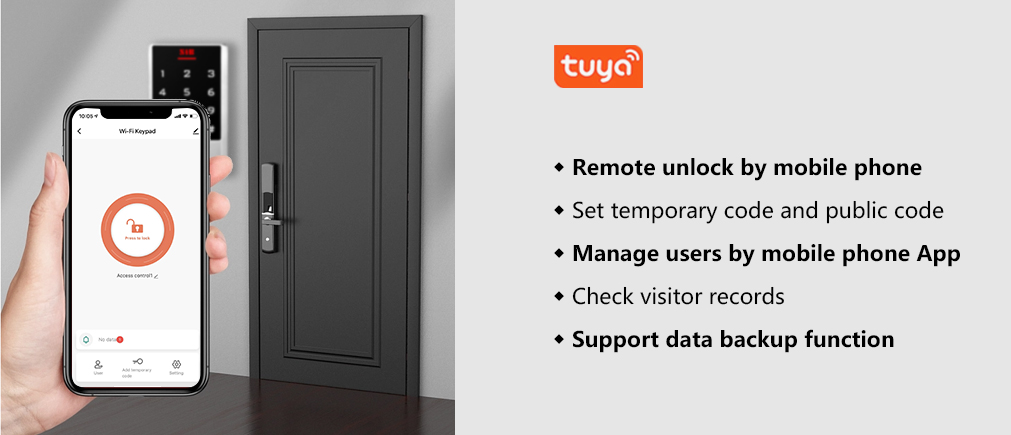

Remote unlock by mobile phone
Set temporary code and public code
Manage users by mobile phone App
Check visitor records
Wigend 26/34 output

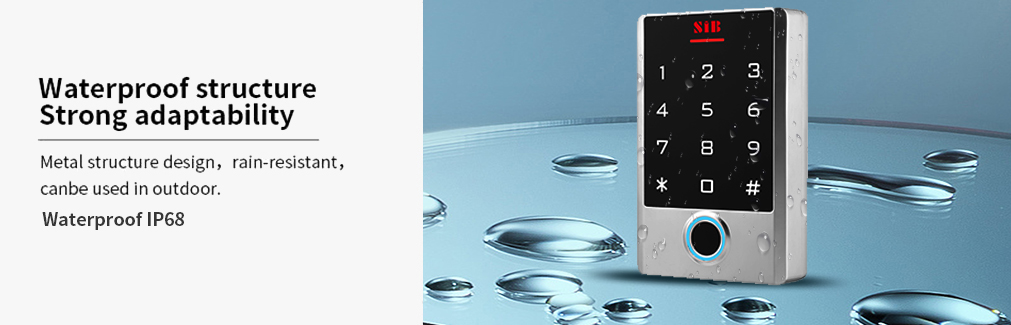

Support outdoor used, waterproof IP68
Support three modes: standalone/reader/toggle relay
Support data backup function
Support admin add/delete card
Metal case, anti-vandal

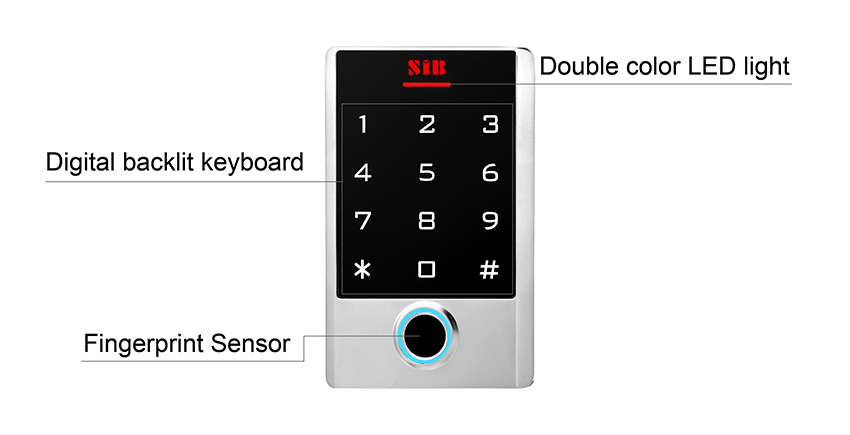

Digital backlit touch keypad
Capacity: 10,000 cards/ codes&300fingerprints

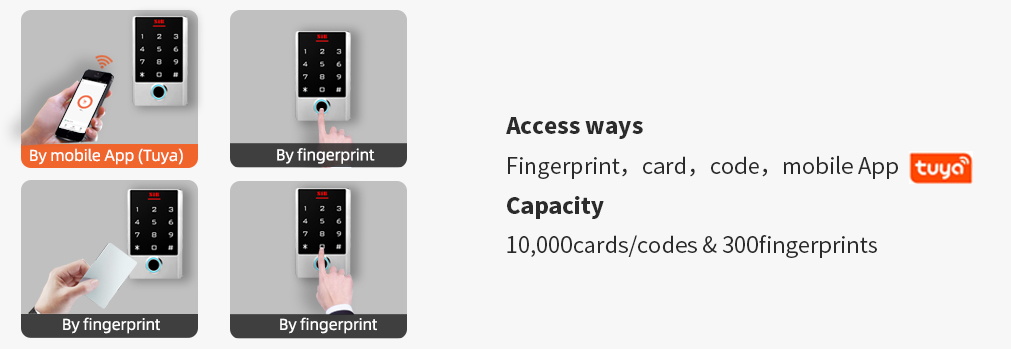

Access ways: Fingerprint/Card/Pin/Mobile app(Tuya)
Product Version
|
Brand |
Model |
Card Type |
Waterproof Degree |
Product Name |
|
SIB |
TF601EM（Wifi） |
EM Card 125Khz |
Indoor |
Wifi Fingerrpint Sensor Touch Panel Proximity Access Control |
|
SIB |
TF601MF（Wifi） |
MF Card 13.56Mhz |
Indoor |
Wifi Biometric Sensor Touch Screen Mifare Access Control |
|
SIB |
TF601EF（Wifi） |
EM+MF Card 125Khz+13.56Mhz |
Indoor | Tuya App Biometric Touch Keypad Dule Frequency EM+Mifare Access Control |
|
SIB |
TF601EM-W（Wifi） |
EM Card 125Khz |
IP68 |
Tuya Smart Waterproof Fingerprint Touch Keyboard Proximity Access Control |
|
SIB |
TF601MF-W （Wifi） |
MF Card 13.56Mhz |
IP68 |
Tuya App Fingerprint Touch Keypad 13.56Mhz MF Access Controller |
|
SIB |
TF601EF-W （Wifi） |
EM+MF Card 125Khz+13.56Mhz |
IP68 |
Wifi Dule Frequency Waterproof Biometric Touch Keypad Access Controller |
Technical parameters
Card type：EM/MF/HID/CPU
Capacity: 10000cards/codes&300fingerprints
Environment Humidity：10%～90%
Lock output：≤1A
Working voltage：DC12V
Static electricity：≤30mA
Alarm output：≤20A
Output short circuit protection time：≤100μS
Card read distance：2～5cm
Ambient temperature：-40℃～60℃
Door Opening Time: 0～99s
Dimension：120 *76*24mm

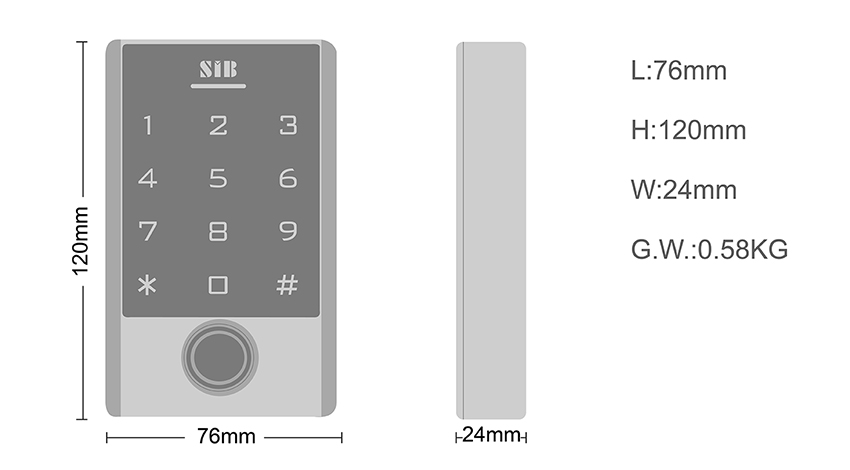

Size & Weight
Package size

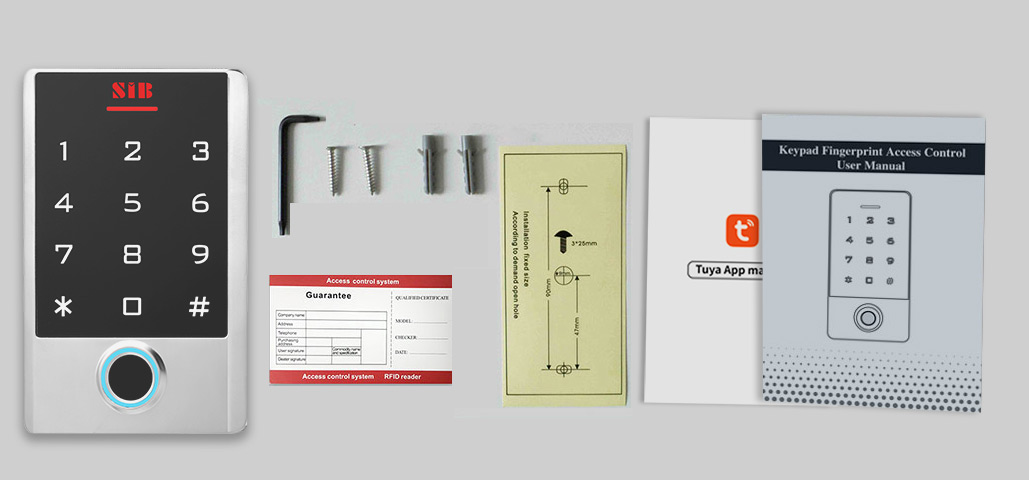

Packing list
Common power supply diagram
Special power supply diagram
Reader mode
